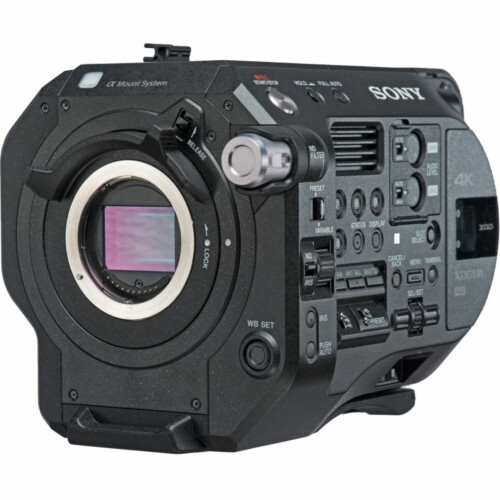

De Sony PXW-FS7 Mark II is een professionele 4K video syseem camera geschikt voor opnames in de allerhoogste resolutie. De FS7 II met een Super 35mm 4K Single-Chip Exmor CMOS-sensor zorgt voor beelden met een grote scherptediepte. De camera is voorzien van een E-mount waardoor u alle E-Mount objectieven kunt gebruiken met ondersteuning van alle functies.
Slowmotion beelden in 4K of UHD tot 60fps of HD tot 180fps worden opgeslagen op XQD-geheugenkaarten in. U kunt ook kiezen om uw beelden op te slaan in XVAC-I, XVAC-L, of MPEG-2. Bovendien bieden de twee XQD-geheugenkaartsleuven de mogelijkheid om simultaan of relay-opnames te maken.
General
- Mass Approx. 2.0 kg (body only)
- Approx. 4.5 kg (with Viewfinder, Eyepiece, Grip Remote Control, BP-U30 battery, SELP18110G LENS, an XQD memory card)
- Dimensions (W x H x D) *1 158.9 x 245.2 x 247mm (body without protrusions)
- Power Requirements DC 16.5V (battery pack)
- DC 12.0V (AC adaptor)
- Power Consumption Approx. 19W (while recording XAVC-I QFHD 59.94P, SELP18110G Lens, Viewfinder ON, not using external device)
- Operating Temperature 0°C to 40°C
- 32°F to 104°F
- Storage Temperature -20°C to +60°C
- -4°F to +140°F
- Battery Operating Time Approx. 1 hrs. with BP-U30 battery (while recording XAVC-I QFHD 59.94P, SELP18110G Lens, Viewfinder ON, not using external device)
- Approx. 2 hrs. with BP-U60 battery while recording XAVC-I QFHD 59.94P, SELP18110G Lens, Viewfinder ON, not using external device)
- Approx. 3 hrs. with BP-U90 battery (while recording XAVC-I QFHD 59.94P, SELP18110G Lens, Viewfinder ON, not using external device)
- Recording Format (Video) XAVC-I mode:DCI4K 59.94P CBG, bit rate 600Mbps, MPEG-4 H.264/AVC
- XAVC-I mode:DCI4K 50P CBG, bit rate 500Mbps, MPEG-4 H.264/AVC
- XAVC-I mode:DCI4K 29.97P CBG, bit rate 300Mbps, MPEG-4 H.264/AVC
- XAVC-I mode:DCI4K 23.98P CBG, bit rate 240Mbps, MPEG-4 H.264/AVC
- XAVC-I mode:DCI4K 24.00P CBG, bit rate 240Mbps, MPEG-4 H.264/AVC
- XAVC-I mode:DCI4K 25P CBG, bit rate 250Mbps, MPEG-4 H.264/AVC
- XAVC-I mode:QFHD 59.94P CBG, bit rate 600Mbps, MPEG-4 H.264/AVC
- XAVC-I mode:QFHD 50P CBG, bit rate 500Mbps, MPEG-4 H.264/AVC
- XAVC-I mode:QFHD 29.97P CBG, bit rate 300Mbps, MPEG-4 H.264/AVC
- XAVC-I mode:QFHD 23.98P CBG, bit rate 240Mbps, MPEG-4 H.264/AVC
- Recording Format (Video) XAVC-I mode:QFHD 25P CBG, bit rate 250Mbps, MPEG-4 H.264/AVC
- XAVC-I mode:HD 59.94P VBR, maximum bit rate 222Mbps, MPEG-4 H.264/AVC
- XAVC-I mode:HD 50P VBR, maximum bit rate 185Mbps, MPEG-4 H.264/AVC
- XAVC-I mode:HD 59.94i VBR, maximum bit rate 111Mbps, MPEG-4 H.264/AVC
- XAVC-I mode:HD 50i VBR, maximum bit rate 112Mbps, MPEG-4 H.264/AVC
- XAVC-I mode:HD 29.97P VBR, maximum bit rate 111Mbps, MPEG-4 H.264/AVC
- XAVC-I mode:HD 23.98P VBR, maximum bit rate 89Mbps, MPEG-4 H.264/AVC
- XAVC-I mode:HD 25P VBR, maximum bit rate 112Mbps, MPEG-4 H.264/AVC
- XAVC-L QFHD 59.94P/50P mode: VBR, maximum bit rate 150Mbps, MPEG-4 H.264/AVC
- Recording Format (Video) XAVC-L QFHD 29.97P/23.98P/25P mode: VBR, maximum bit rate 100Mbps, MPEG-4 H.264/AVC
- XAVC-L HD 50 mode: VBR, maximum bit rate 50Mbps, MPEG-4 H.264/AVC
- XAVC-L HD 35 mode:VBR, maximum bit rate 35Mbps, MPEG-4 H.264/AVC
- XAVC-L HD 25 mode:VBR, maximum bit rate 25Mbps, MPEG-4 H.264/AVC
- MPEG HD422 mode:CBR, maximum bit rate 50Mbps, MPEG-2 422P@HL
- Recording Format (Audio) LPCM 24 bits, 48 kHz, 4 channels
- Recording Frame Rate XAVC-I DCI4K mode: 4096x2160/ 59.94P, 50P, 29.97P, 23.98P, 24P, 25P
- XAVC-I QFHD mode: 3840x2160/ 59.94P, 50P, 29.97P, 23.98P, 25P
- XAVC-I HD mode: 1920x1080/59.94P, 50P, 59.94i, 50i, 29.97P, 23.98P, 25P
- XAVC-L QFHD mode: 3840x2160/59.94P, 50P, 29.97P, 23.98P, 25P
- XAVC-L HD 50 mode: 1920x1080/59.94P, 50P, 59.94i, 50i, 29.97P, 23.98P, 25P
- XAVC-L 35 mode: 1920x1080/59.94P, 50P, 59.94i, 50i, 29.97P, 23.98P, 25P
- XAVC-L 25 mode: 1920x1080/59.94i, 50i
- MPEG HD422 mode: 1920x1080/59.94i, 50i, 29.97P, 23.98P, 25P
- 1280x720/59.94P, 50P, 29.97P, 23.98P, 25P
- Recording/Playback Time XAVC-I mode QFHD 59.94P
- When using QD-G128A(128GB):
- Approx. 22 minutes
- XAVC-I mode QFHD 50P
- When using QD-G128A(128GB):
- Approx. 26 minutes
- XAVC-I mode QFHD 29.97P
- When using QD-G128A(128GB):
- Approx. 44 minutes
- XAVC-I mode QFHD 23.98P
- When using QD-G128A(128GB):
- Approx. 55 minutes
- XAVC-I mode QFHD 25P
- When using QD-G128A(128GB):
- Approx. 52 minutes
- Recording/Playback Time XAVC-I mode HD 59.94P
- When using QD-G128A(128GB):
- Approx. 59 minutes
- XAVC-I mode HD 50P
- When using QD-G128A(128GB):
- Approx. 71 minutes
- XAVC-I mode HD 59.94i
- When using QD-G128A(128GB):
- Approx. 118 minutes
- XAVC-I mode HD 50i
- When using QD-G128A(128GB):
- Approx. 141 minutes
- XAVC-I mode HD 29.97P
- When using QD-G128A(128GB):
- Approx. 118 minutes
- Recording/Playback Time XAVC-I mode HD 23.98P
- When using QD-G128A(128GB):
- Approx. 147 minutes
- XAVC-I mode HD 25P
- When using QD-G128A(128GB):
- Approx. 141 minutes
- XAVC-L mode QFHD 59.94P/50P
- When using QD-G128A(128GB):
- Approx. 87 minutes
- XAVC-L mode QFHD 29.97P/23.98P/25P mode:
- When using QD-G128A(128GB):
- Approx. 131 minutes
- XAVC-L 50 mode
- When using QD-G128A(128GB):
- Approx. 262 minutes
- Recording/Playback Time XAVC-L 35 mode
- When using QD-G128A(128GB):
- Approx. 374 minutes
- XAVC-L 25 mode
- When using QD-G128A(128GB):
- Approx. 524 minutes
- MPEG HD422 mode
- When using QD-G128A(128GB):
- Approx. 262 minutes
Lens
- Lens Mount E-mount (lever lock type)
Camera Section
- Imaging Device (Type) Super35 type Single-chip Exmor CMOS
- Effective Picture Elements 17:9 4096 (H) x 2160 (V)
- 16:9 3840 (H) x 2160 (V)
- Built-in Optical Filters ND filters
- OFF: CLEAR
- 1: 1/4ND
- 2: 1/16ND
- 3: 1/64ND
- Linear variable ND (1/4ND to 1/128ND)
- Sensitivity (2000 lx, 89.9% reflectance) Video Gamma: T14 (3840 x 2160/23.98P mode 3200K)
- ISO Sensitivity ISO 2000(S-Log3 Gamma D55 Light source)
- Minimum Illumination 0.7 lx (+18dB,23.98P,Shutter OFF,ND Clear, F1.4)
- S/N Ratio 57 dB (Y) (typical)
- Shutter Speed 1/3 sec to 1/9,000 sec
- Slow & Quick Motion Function XAVC-I mode 3840x2160: 1 to 60 frames (59.94P, 50P, 29.97P, 23.98P, 25P)
- XAVC-I mode 1920x1080:1 to 180 frames (59.94P, 29.97P, 23.98P) 1 to 150 frames (50P,25P)
- XAVC-L mode 3840x2160:1 to 60 frames (59.94P, 50P, 29.97P, 23.98P, 25P)
- XAVC-L mode 1920x1080: 1 to 120 frames (59.94P, 50P, 29.97P, 23.98P, 25P)
- White Balance Preset, Memory A, Memory B(1500K-50000K)/ATW
- Gain -3, 0, 3, 6, 9, 12, 18 dB, AGC
- Gamma Curve STD,HG,User,S-Log2, S-Log3
Input/Output
- Audio Input XLR-type 3-pin (female) (x2), line/mic/mic +48 V selectable Mic Reference: -40, -50, -60dBu
- SDI Output BNC(x2), switchable with 3G-SDI/HD-SDI SMTPE292M/424M/425M
- USB USB device, mini-B (x1)
- Headphone Output Stereo mini jack (x1) -16dBu 16Ω
- Speaker Output Monaural
- DC Input DC jack
- Remote Stereo mini-mini jack (Φ2.5 mm)
- HDMI Output Type A (x1)
- Option 4-pin, Type A for W-LAN (x1)
Monitoring
- Built-in LCD Monitor 8.8cm (3.5 type) Approx. 1.56M dots
Built-in Microphone
- Built-in Microphone Omni-directional monaural electret condenser microphone
Media
- Type XQD Card slot(x2)
- SD Card slot(x1) for saving configuration data
Supplied Accessories
- Supplied Accessories Body Cap (1)
- Viewfinder (1)
- Viewfinder hood(1)
- Eyepiece (1)
- Grip Remote Control (1)
- USB wireless LAN module IFU-WLM3 (1)
- Wireless remote commander (1) (RMT-845)
- WA Adaptor Bracket (1)
- AC Adapter(1)
- BC-U1 battery charger (1)
- BP-U30 battery pack (1)
- Power cord (2)
- USB cable (1)
- Operating Guide (1)
- CD-ROM "Manual for Solid-State Memory Camcorder" (1)
- IS1293 power cord for India (Not supplied in some countries) (2)
Type beeldsensor | Exmor R®-CMOS-sensor |
---|---|
Beeldstabilisatie | Objectief |
Compatibele geheugenkaarten | XQD |
Videoresolutie | 4K, Full HD, HD |
Maximale videoresolutie | (4K) 3840 x 2160 / 60fps |
Optische zoom | Geen |
35 mm cameralens equivalent | n.v.t. |
Viewfinder | Elektronisch |
Filtermaat | Geen |
Accu | BP-U30 |
Gewicht | 2.0 kg |
Merk | Sony |
